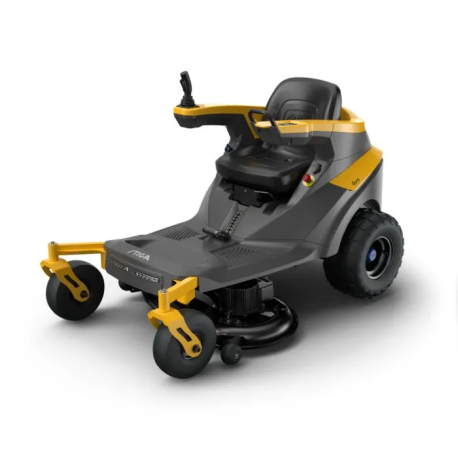

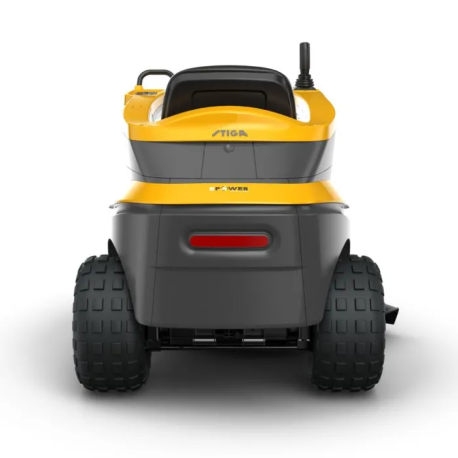

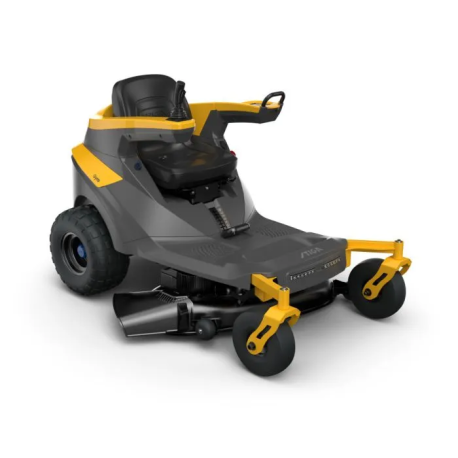

STIGA Gyro 500E axial battery-powered lawn tractor

STIGA Gyro is the first joystick-controlled lawn tractor with drive-by-wire transmission using STIGA Direct Drive technology. Battery-powered, energy-efficient, and safe. The STIGA drive-by-wire system is truly intuitive and easy to manage. The entire design and operation of the STIGA Gyro axial lawn tractor are based on the patented STIGA Direct Drive technology. The STIGA Gyro 500e is the smallest model in the family, featuring a 98 cm cutting deck (optional mulching) and a 40 Ah battery. Up to 80 minutes of runtime and 5000 m² of working area (on a single charge).

-STIGA Direct Drive: patented STIGA technology that makes the machine easier to drive and more reliable.

-Safety – maximum control and excellent stability, even at high speeds

-STIGA ePower – Performance well beyond industry standards.

-Suitable for large gardens - Covers up to 5,000 m² on a single charge

-STIGA Smart cutting and driving modes to adjust the machine according to the work to be done

-Battery kit included

The exclusive STIGA joystick technology offers maximum control over direction, steering, and speed, as well as a 360º turning radius to easily cut around trees, shrubs, flower beds, and garden ornaments, just like a zero-turn mower, but in an improved version.

Control both the blade rotation and the traction speed for a fully customizable cut, perfectly suited to the shape, size, and conditions of your lawn. The STIGA lawn tractor management system automatically communicates with the machine's traction controllers, independently managing the Direct Drive motors in each rear wheel to provide immediate response, maximum safety, and precise trajectory during cutting.

Adjust the deck to eight cutting positions using the very light central lever. Then, with the STIGA Smart cutting mode, choose from three blade speed settings: Eco (2,800 rpm) for very frequent cuts of soft grass or for mulching, Standard (3,000 rpm) for regular weekly sessions with cuts up to 2.5 cm, and Boost (3,200 rpm) for faster cuts or thicker and taller grass.

The Gyro axial lawn tractor allows you to combine cutting and driving speed to suit the type of work to be done on the lawn. You can choose between Standard for your usual cutting sessions and Performance at 11 km/h for faster results. For each speed, Gyro will automatically limit the minimum and maximum speeds and apply different acceleration curves: this way, you will have control in every circumstance, regardless of the chosen speed.

Thanks to a well-studied weight distribution and a very low center of gravity (only 55.3 cm), Gyro offers optimal stability (both for pitching and rolling) even on slopes up to 15°. Following STIGA's testing philosophy that goes well beyond industry standards, Gyro is tested to ensure a greater safety margin (up to 32°) compared to the suggested use of the machine. Additionally, the battery-powered lawn tractor's electronics automatically manage speed limits on slopes, further enhancing safety.

Thanks to the integrated ePower battery and the 98 cm wide side-discharge cutting deck, the Gyro 500e can cut up to 5,000 m² on a single charge, with minimal noise and vibrations. Use the included fast charger to fully recharge the battery in just 2 hours and 45 minutes.

Get on and off the machine easily: the wide platform offers plenty of legroom. You will have complete visibility of every work area. Finally, you can work with a lawn mower that meets your physical needs. You can drive in comfort, thanks to the high back support seat and dual parallel suspension system that absorbs vibrations on uneven terrain. The controls are within easy reach.

Patented STIGA Direct Drive technology: The entire design and functionality of the STIGA Gyro axial lawn tractor are based on the exclusive STIGA Direct Drive technology. Dual independent electric transmission, one for each wheel, positioned in line and equipped with powerful brushless electric motors with epicyclic gearbox, meaning: the highest reduction ratio, thus maximum efficiency. Turning radius up to 360° for complete maneuverability.

STIGA joystick with drive-by-wire transmission: Intuitive and easy to manage, especially for those used to lever-operated machines. The entire driving system of this lawn tractor is extremely responsive and allows you to control direction, steering, and speed in a single operation. The constant communication between the joystick and the machine's electronic brain (STIGA Vehicle management system) makes driving smooth, easy, and safe.

You are in control: Choose one of the three STIGA Smart cutting modes and between the two Smart driving modes, including Performance mode, which allows you to reach a maximum speed of 11 km/h: you decide how to work, depending on your needs and the type of cut to be performed.

Designed for safety and stability: Thanks to a well-studied weight distribution, the Gyro axial lawn tractor ensures optimal stability, both for pitching and rolling (even on slopes up to 15°). Additionally, the tractor's electronics automatically manage speed limits on slopes.

A tractor designed around the user: Ease of entry and exit: the wide platform offers plenty of legroom. You will have complete visibility of every work area. Finally, you can work with a machine that meets your physical needs. You can drive in comfort, thanks to the high back support seat and dual parallel suspension system that absorbs vibrations on uneven terrain. All controls are within easy reach.

STIGA ePower: Intelligent, safety-tested, and synchronized with STIGA products, ePower is a new generation of batteries. The tests we conduct on ePower batteries are 5 times more demanding than standard industry requirements, to ensure the highest quality standards in terms of performance, reliability, and battery integrity over time. Our batteries are efficient, as we have optimized and secured the position of each individual cell; safe, as we have created space to allow air to cool; and intelligent, as we have developed and tested the electronics and software that control the cells. They provide power longer and last longer, thanks to intelligent energy management operating across all machines and tools that work with interchangeable ePower batteries.

CONTENTS OF THE PACKAGE

-Battery-powered axial lawn tractor

-Battery

-Assisted

-ePower

FEATURES:

E-Power: Yes

Voltage 48 Volt

Charging time 2.45 h

Power Supply Lithium-ion battery

Power 4.7 kW

Battery capacity 40 Ah

Battery kit Included

Battery type Lithium-ion

Battery voltage 48 V

Nominal lithium battery energy 2000 Wh

Number of cells 224

Charging power 18 A

Charging system External charger

Temperature control Yes - Temperature sensors

Recommended cutting area 5000 ㎡

Minimum uncut radius 0 cm

Cutting width 98 cm

Cutting in reverse  Yes

Deck construction Stamped

Body material Steel

Deck lift Manual

Blade rotation Asynchronous

Cutting height adjustment Manual

Cutting height positions 8 positions

Cutting heights 25 - 105 mm

Number of blades 2

Blade type Mulching

Additional cutting system Mulching Multiclip

Maximum slope 15°

Drive Drive by wire - Joystick

STIGA eMotion advancement

Traction Rear traction

Maximum forward speed 11 km/h

Transmission Dual electric - STIGA Direct Drive

Transmission method Drive-by-wire

Steering Electronic control

Seat type Comfort with high back

Seat adjustment Single lever

Dashboard Yes with LED

Front wheel size 11x4.00-5

Rear wheel size 18x8.50-8

LED lights

PTO system - power take-off Electric

Anti-scalp wheels 2

Safety system Seat with safety switch

Bluetooth receiverYes

Mulching kitOptional

ChargerSingle fast

Towing kit Not applicable

Package weight 271 kg

Product length 1745 mm

Product width 1194 mm

Product height1164 mm
