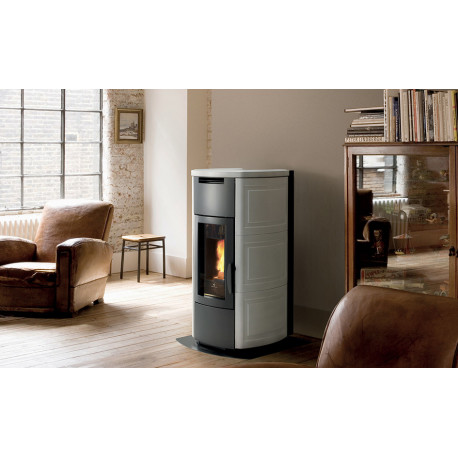

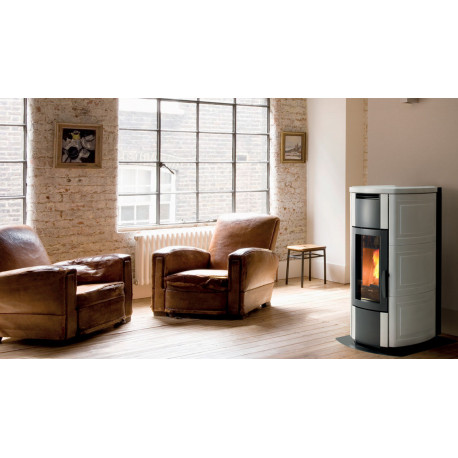

Stove a pellet Hydro
Self-cleaning brazier
Cast iron top
Metal ceramic-coated sides
One deactivatable front fan
Touch remote control
Thermal power: 6.7 - 19 kW
Heats up to: 465 m3 (about 172 m2)
Autonomy: 7 - 19 h
Coating and color: Ceramic, White
Nominal power (kW) 6.7 - 19
Thermal power introduced (kW) 7.0 - 20.0
Thermal power delivered to water 5.1 - 15.8
Dimensions H x W x D (cm) 118 x 61 x 64
Net Weight (Kg) 235
Hourly consumption - min/max (Kg/h) 1.5 - 4.1
Efficiency min/max 94.8 - 95.3
Flue outlet pipe (Ø mm) 80 (Rear)
Tank capacity (Kg) 28
Min/max autonomy (h) 7 - 19
Electric power in operation (W) 87
Clean Air™ 5 stars
Energy class A++
ASH TRAY Convenient and easy drawer to collect burnt ashes.
CLEAR An additional air channel creates an air cushion between the flame and the ceramic glass, ensuring clarity for several hours of operation.
WET FLUE WAYS It has been designed to maximize the surfaces in contact with the water to be heated, making the best use of the heat produced by combustion and limiting heat and fuel waste.
PELLET PILOT Directly associated with the work of the K Probe, Pellet Pilot is an innovative pellet load control system based on the machine's maximum and minimum working power, maintaining ideal consumption levels.
RDCS Double Cleaning System of the self-cleaning brazier, the machine performs a double automatic cleaning. The first, with excess oxygen, cleans the brazier; the second cleans the bottom.
RDS Ravelli Dynamic System, the innovative self-regulating system of combustion parameters to always ensure maximum efficiency and safety of the stoves.
